ESP32C3使用Slint渲染OLED屏幕

前言：说一下为什么要用slint，既然都选择用rust开发嵌入式了避免不了要折腾，也是为后续驱动st7789做铺垫吧。而其实对应OLED屏幕已经有一个很好用的库了embedded-graphics，几乎能满足OLED屏幕的全部需求了，但是slint有动画，定时器，声明式，这些优势，再嵌入式开发再合适不过了。在写这个的时候也遇到不少坑，所以记录一下吧

创建项目

引入库编译问题已经在 ESP32C3引入Slint 文章解决了

先创建一个最基础的esp32c3的项目

然后再Cargo.toml中添加依赖

# 基础依赖
critical-section = "1.2.0"
esp-hal          = { version = "1.0.0-beta.0", features = ["esp32c3","unstable"] }
esp-alloc = "0.7.0"
esp-println = { version = "0.13.1",features = ["esp32c3","log"] }
log = "0.4.27"
esp-backtrace = { version = "0.15.1" ,features = ["esp32c3","println","panic-handler"]}


# 图形相关
embedded-hal = "0.2.7"
embedded-graphics-core = "0.4.0"
embedded-graphics = "0.8.1"
embedded-graphics-framebuf = "0.5.0"
ssd1306 = { version = "0.10.0" ,features = ["graphics"]}

# 异步
esp-hal-embassy  = { version = "0.7.0", features = ["esp32c3"] }
embassy-time     = { version = "0.4.0", features = ["generic-queue-8"] }
embassy-executor = { version = "0.7.0",features = ["task-arena-size-20480"] }
static_cell      = { version = "2.1.0", features = ["nightly"] }



[dependencies.slint]
git = "https://github.com/slint-ui/slint"
rev = "29168bc89270798f6075a0a729c14a3f011ceb4f"  # 修复提交的哈希
default-features = false
features = [
    "compat-1-2",
    "unsafe-single-threaded",  # 启用单线程模式
    "libm",
    "renderer-software",
]

[build-dependencies]
slint-build = {git = "https://github.com/slint-ui/slint",rev = "29168bc89270798f6075a0a729c14a3f011ceb4f"}

配置Slint

我们使用slint的ui跟代码分离的模式，修改build.rs
新增一个build_slint函数，然后在main函数中调用它

fn main(){
  build_slint();
  ...
}
fn build_slint(){
    slint_build::compile_with_config(
        "ui/MainView.slint",
        slint_build::CompilerConfiguration::new()
            .embed_resources(slint_build::EmbedResourcesKind::EmbedForSoftwareRenderer)
    ).unwrap()
}

创建UI文件

在项目根目录下创建 ui/MainView.slint 文件，定义 UI 界面

// 由于是在no_std的环境下，没有默认字体，使用需要引入自定义的字体
import "./fonts/simhei.ttf";

// 这里定义了一个全局的状态，用于在rust代码里进行修改ui状态
export global MyState {
    in-out property <bool> is_show : true;
}

export component MainView inherits Window {
    default-font-family: "黑体";
    width: 128px;
    height: 64px;
    Rectangle {
        x:0px;
        y:0px;
        width: 100%;
        height: 100%;
        background: transparent;
        border-color: black;
        border-width: 5px;
    }

    Rectangle {
        x:10px;
        y:6px;
        width: 50px;
        height: 50px;
        background: black;
        border-radius: 360px;
        visible: MyState.is_show;

    }

    property <bool> is_show : false;
    Rectangle {
        x:80px;
        y:6px;
        width: 20px;
        height: 20px;
        background: black;
        visible: is_show;
    }

// 使用了slint的ui的定时器
    timer:=Timer{
        interval: 0.5s;
        running: true;
        triggered => {
            is_show = !is_show;
        }
    }

    Text {
        font-family: "SimHei";
        text: "12345";
        color: black;
        font-weight: 900;
        font-size: 40px;
        x:66px;
    }


}

编写main.rs代码

因为是使用的no_std，没有多线程，而slint的run方法会调用invoke_from_event_loop方法，进而导致阻塞线程，所以需要改造，不使用run方法来渲染，而是手动处理渲染，在实现traitPlatform时，不去重写invoke_from_event_loop函数，我们在初始化代码块去使用异步发方式实现

slint::include_modules!();

#[panic_handler]
fn panic(info: &core::panic::PanicInfo) -> ! {
    loop {
        error!("panic:{}",info);
    }
}


#[esp_hal_embassy::main]
async fn main(spawner: Spawner) -> ! {
    // generator version: 0.3.1
    // init_logger_from_env();
    init_logger(LevelFilter::Debug);
    esp_alloc::heap_allocator!(size: 100 * 1024);
    info!("分配内存完成");

    let config = esp_hal::Config::default().with_cpu_clock(CpuClock::max());
    let peripherals =esp_hal::init(config);

    // 配置异步
    let timer0 = SystemTimer::new(peripherals.SYSTIMER);
    esp_hal_embassy::init(timer0.alarm0);


    let i2c = esp_hal::i2c::master::I2c::new(peripherals.I2C0, esp_hal::i2c::master::Config::default()
        .with_frequency(Rate::from_khz(400)))
        .unwrap()
        .with_sda(peripherals.GPIO8)
        .with_scl(peripherals.GPIO9);

    let display = Ssd1306::new(
        I2CDisplayInterface::new(i2c),
        DisplaySize128x64,
        DisplayRotation::Rotate0).into_buffered_graphics_mode();


    info!("开启异步任务");
    spawner.spawn(ui_run(display,spawner)).ok();


    loop{
        Timer::after_secs(2).await;
    }
    // for inspiration have a look at the examples at https://gitcahub.com/esp-rs/esp-hal/tree/esp-hal-v1.0.0-beta.0/examples/src/bin
}

#[embassy_executor::task]
async fn ui_run(mut display: SSD,spawner: Spawner){
    // 创建平台实例
    let window = slint::platform::software_renderer::MinimalSoftwareWindow::new(
        slint::platform::software_renderer::RepaintBufferType::ReusedBuffer,
    );
    window.set_size(PhysicalSize::new(128,64));
    let platform = EspPlatform::new(window.clone());
    slint::platform::set_platform(Box::new(platform)).unwrap();

    // 创建ui
    let ui = MainView::new().unwrap();
    ui.window().set_size(PhysicalSize::new(128,64));

    let ui_weak = ui.as_weak();
    spawner.spawn(ui_task(ui_weak)).ok();

    info!("进入了loop run");
    // 初始化显示
    display.init().unwrap();
    display.clear(BinaryColor::Off).unwrap();
    display.flush().unwrap();
    info!("清理屏幕 on");

    // 创建行缓冲区
    let display_width = 128; // 根据实际显示宽度设置
    let mut the_frame_buffer = [Rgb565Pixel(0); 128 * 64]; // 128x64
    // 这里是我们手动实现的invoke_from_event_loop
    loop {
        // 更新UI状态
        slint::platform::update_timers_and_animations();
        // 渲染UI
        window.draw_if_needed(|renderer| {
            info!("进入渲染回调");
            renderer.render_by_line(FrameBuffer{ frame_buffer: &mut the_frame_buffer, stride: display_width,display:&mut display });
            info!("退出渲染回调");
            // 退出渲染回调，说明整个帧已经渲染完成，这时候刷新屏幕
            display.flush().unwrap();
        });
        Timer::after_millis(100).await;
    }
}

#[embassy_executor::task]
async fn ui_task(view:Weak<MainView>){
    info!("ui_task 已经开启");
    loop{
        // 在这里用rust的代码更新slint的ui状态
        let view = view.clone();
        let view = view.upgrade().unwrap();
        let show = view.global::<MyState>().get_is_show();
        view.global::<MyState>().set_is_show(!show);
        info!("show的状态为：{}",show);
        Timer::after_secs(2).await;
    }

}

// 平台实现结构体
// 为了方便，先将OLED的屏幕生命周期设置为静态的
type SSD = Ssd1306<I2CInterface<I2c<'static,Blocking>>,DisplaySize128x64,BufferedGraphicsMode<DisplaySize128x64>>;
struct EspPlatform{
    window: Rc<slint::platform::software_renderer::MinimalSoftwareWindow>,
}

impl EspPlatform {
    fn new(window:Rc<MinimalSoftwareWindow>) -> Self {
        Self {
            window
        }
    }
}


/// 实现 Platform trait
impl Platform for EspPlatform {
    fn create_window_adapter(&self) -> Result<Rc<dyn WindowAdapter>, PlatformError> {
        info!("成功创建了window");
        Ok(self.window.clone())
    }

    fn duration_since_start(&self) -> core::time::Duration {
        let time = Instant::now().duration_since_epoch().as_millis();
        // info!("time :{}",time);
        core::time::Duration::from_millis(
            time
        )
    }
}


struct FrameBuffer<'a>{ frame_buffer: &'a mut [Rgb565Pixel], stride: usize,display:&'a mut SSD }
impl<'a> LineBufferProvider for FrameBuffer<'a> {
    type TargetPixel = Rgb565Pixel;
    fn process_line(
        &mut self,
        line: usize,
        range: core::ops::Range<usize>,
        render_fn: impl FnOnce(&mut [Self::TargetPixel]),
    ) {
        let line_start = line * self.stride;
        let line_pixels = &mut self.frame_buffer[line_start..line_start + 128];

        render_fn(&mut line_pixels[range.clone()]);

        // 规定黑色为亮，由于是在oled屏幕上渲染，只有亮或者不亮，为了方便我们规定一个颜色为亮色，其余的颜色都视为不亮，在ui页面也是，使用黑色作为渲染的区域
        let black = Rgb565Pixel(0);
        for (x,row) in line_pixels.iter().enumerate(){
            // 先将要更新的行的地方进行清屏
            self.display.set_pixel(x as u32,line as u32,false);
            // 然后对应要渲染的像素点进行渲染
            if row == &black{
                self.display.set_pixel(x as u32, line as u32, true);
            }
        }
    }
}

编译查看效果

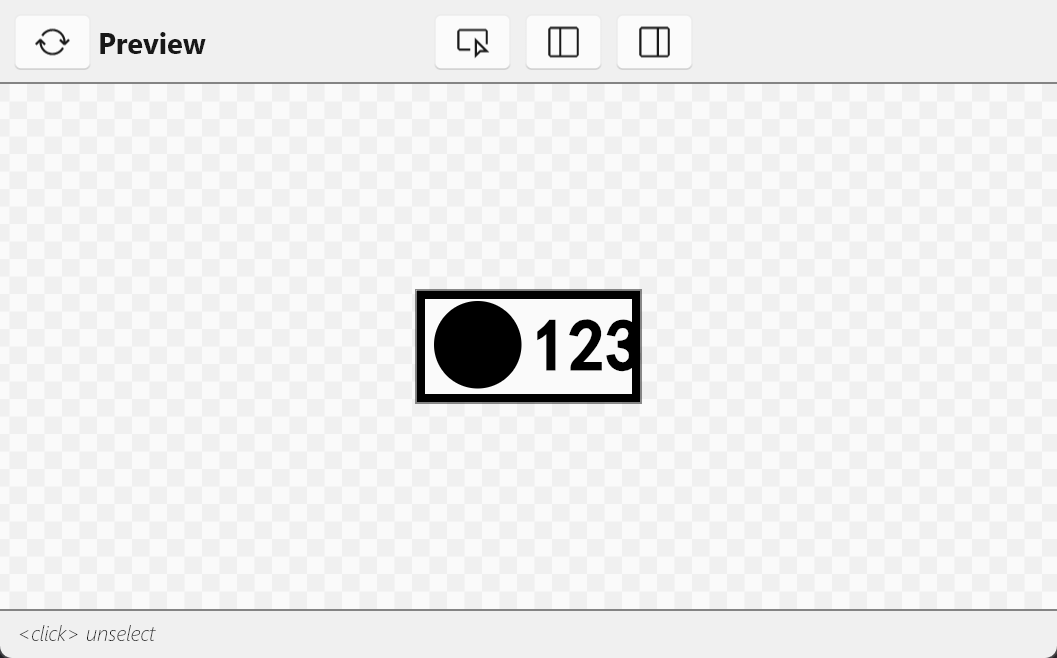

预览页面

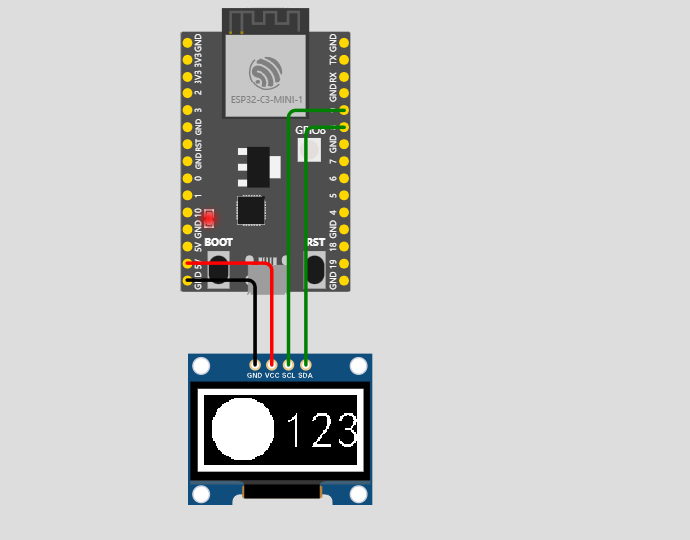

烧录的效果跟我们slint编写的ui页面一致
