波浪效果
class SineWaveWidget extends StatefulWidget {
final double amplitude; // 振幅（波浪的高度）
final double frequency; // 频率（波浪的密集程度）
final Color color; // 波浪颜色
final Duration duration; // 流动一圈的周期
const SineWaveWidget({
super.key,
this.amplitude = 20.0,
this.frequency = 2.0,
this.color = Colors.blueAccent,
this.duration = const Duration(seconds: 1),
});
@override
State<SineWaveWidget> createState() => _SineWaveWidgetState();
}
class _SineWaveWidgetState extends State<SineWaveWidget>
with SingleTickerProviderStateMixin {
late AnimationController _controller;
bool _isForward = true;
@override
void initState() {
super.initState();
// 创建一个无限循环的动画控制器，用于驱动波浪的相位变化
_controller = AnimationController(
vsync: this,
duration: widget.duration,
lowerBound: 0.0,
upperBound: 2 * pi,
)..repeat(); // 自动无限循环
}
@override
void dispose() {
_controller.dispose();
super.dispose();
}
@override
Widget build(BuildContext context) {
return GestureDetector(
onTap: () {
_isForward = !_isForward;
},
child: AnimatedBuilder(
animation: _controller /*.drive(Tween(begin: 0, end: 2 * pi))*/,
// 将 0~1 的进度映射为 0~2π 的相位
builder: (context, child) {
return CustomPaint(
size: Size.infinite, // 填满父容器
painter: SineWavePainter(
amplitude: widget.amplitude,
frequency: widget.frequency,
color: widget.color,
phase: _controller.value * (_isForward ? 1 : -1),
),
);
},
),
);
}
}
class SineWavePainter extends CustomPainter {
final double amplitude;
final double frequency;
final Color color;
final double phase;
SineWavePainter({
required this.amplitude,
required this.frequency,
required this.color,
required this.phase,
});
@override
void paint(Canvas canvas, Size size) {
// final paint = Paint()
// ..color = color
// ..style = PaintingStyle.fill
// ..blendMode = BlendMode.xor;
//
// final path = Path();
//
// // 将波浪的基准线设置在垂直中心
// final centerY = size.height / 2;
//
// // 1. 起点：从左下角开始
// path.moveTo(0, size.height);
//
// // 2. 绘制正弦曲线
// // 遍历画布的每一个像素宽度
// for (double x = 0; x <= size.width; x++) {
// // 核心公式：y = A * sin(ω * x + φ)
// // 乘以 2π 是为了让 frequency 代表“画布宽度内包含的完整波浪数量”
// final y = centerY +
// amplitude * sin((x / size.width) * frequency * 2 * pi + phase);
// path.lineTo(x, y);
// }
//
// // 3. 闭合路径：连接到右下角，再回到左下角，形成封闭的填充区域
// path.lineTo(size.width, size.height);
// path.close();
//
// final path2 = Path();
// path2.moveTo(0, size.height);
// for (double x = 0; x <= size.width; x++) {
// final y = centerY +
// amplitude * sin((x / size.width) * frequency * 2 * pi + (phase + pi));
// path2.lineTo(x, y);
// }
// path2.lineTo(size.width, size.height);
// path2.close();
//
// // 4. 绘制到画布上
// canvas.drawPath(path, paint);
// canvas.drawPath(path2, paint);
final paint = Paint()
..color = color
..style = PaintingStyle.fill
..blendMode = BlendMode.multiply;
final centerY = size.height / 2;
final omega = frequency * 2 * pi / size.width;
// 将波浪划分为固定的段数（例如 16 段），确保动画循环时首尾完美衔接
final segments = (frequency * 4).toInt();
final step = size.width / segments;
for (int wave = 0; wave < 2; wave++) {
final currentPhase = phase + (wave * pi);
final path = Path();
// 起点：左下角
path.moveTo(0, size.height);
// 遍历每个分段点
for (int i = 0; i <= segments; i++) {
final x = i * step;
final y = centerY + amplitude * sin(omega * x + currentPhase);
if (i == 0) {
path.lineTo(x, y);
} else {
// 前一个点的坐标和 Y 值
final prevX = (i - 1) * step;
final prevY = centerY + amplitude * sin(omega * prevX + currentPhase);
// 计算前一个点的切线斜率（导数）
final prevSlope =
amplitude * omega * cos(omega * prevX + currentPhase);
// 计算控制点（基于前一点的切线推算）
final controlX = prevX + step / 2;
final controlY = prevY + (prevSlope * step) / 2;
// 使用二次贝塞尔曲线连接
path.quadraticBezierTo(controlX, controlY, x, y);
}
}
// 严格闭合路径：确保右下角和左下角完美贴合
path.lineTo(size.width, size.height);
path.close();
canvas.drawPath(path, paint);
}
}
@override
bool shouldRepaint(covariant SineWavePainter oldDelegate) {
// 只要相位（phase）发生变化，就重绘（用于实现流动动画）
return oldDelegate.phase != phase;
}
}
QQ消息拖拽效果
class QqDragBubble extends StatefulWidget {
final double initialRadius; // 初始圆半径
final double maxDragDistance; // 最大拖拽断裂距离
final Color color;
const QqDragBubble({
super.key,
this.initialRadius = 15.0,
this.maxDragDistance = 100.0,
this.color = Colors.red,
});
@override
State<QqDragBubble> createState() => _QqDragBubbleState();
}
class _QqDragBubbleState extends State<QqDragBubble>
with SingleTickerProviderStateMixin {
Offset _dragOffset = Offset.zero; // 手指拖拽位置
bool _isDragging = false;
bool _isBurst = false; // 是否已断裂
late AnimationController _burstController;
late Animation<double> _burstAnimation;
@override
void initState() {
super.initState();
_burstController = AnimationController(
vsync: this,
duration: const Duration(milliseconds: 200),
);
_burstAnimation = Tween<double>(begin: 1.0, end: 0.0).animate(
CurvedAnimation(parent: _burstController, curve: Curves.easeOut),
);
}
@override
void dispose() {
_burstController.dispose();
super.dispose();
}
void _onPanUpdate(DragUpdateDetails details) {
if (_isBurst) return;
setState(() {
_isDragging = true;
_dragOffset += details.delta;
});
}
void _onPanEnd(DragEndDetails details) {
if (_isBurst) return;
final distance = _dragOffset.distance;
if (distance > widget.maxDragDistance) {
// 超过临界值，触发断裂动画
setState(() => _isBurst = true);
_burstController.forward(from: 0.0);
} else {
// 未超过临界值，回弹
setState(() {
_isDragging = false;
_dragOffset = Offset.zero;
});
}
}
@override
Widget build(BuildContext context) {
return GestureDetector(
onPanUpdate: _onPanUpdate,
onPanEnd: _onPanEnd,
child: AnimatedBuilder(
animation: _burstAnimation,
builder: (context, child) {
return CustomPaint(
size: Size(300, 300), // 给足绘制空间
painter: QqBubblePainter(
color: widget.color,
initialRadius: widget.initialRadius,
dragOffset: _isDragging ? _dragOffset : Offset.zero,
maxDragDistance: widget.maxDragDistance,
burstScale: _isBurst ? _burstAnimation.value : 1.0,
isDragging: _isDragging && !_isBurst,
),
);
},
),
);
}
}
class QqBubblePainter extends CustomPainter {
final Color color;
final double initialRadius;
final Offset dragOffset;
final double maxDragDistance;
final double burstScale;
final bool isDragging;
QqBubblePainter({
required this.color,
required this.initialRadius,
required this.dragOffset,
required this.maxDragDistance,
required this.burstScale,
required this.isDragging,
});
@override
void paint(Canvas canvas, Size size) {
final paint = Paint()
..color = color
..style = PaintingStyle.fill;
// 起点圆心（屏幕中心）
final startCenter = Offset(size.width / 2, size.height / 2);
// 拖拽圆（终点）圆心
final endCenter = startCenter + dragOffset;
// 计算两点间的距离和角度
final distance = (endCenter - startCenter).distance;
final angle =
atan2(endCenter.dy - startCenter.dy, endCenter.dx - startCenter.dx);
// 1. 动态计算半径：拖拽越远，起点圆越小；终点圆保持原大小
double startRadius = initialRadius;
double endRadius = initialRadius;
if (isDragging && distance < maxDragDistance) {
final ratio = distance / maxDragDistance;
startRadius = initialRadius * (1 - ratio * 0.7); // 起点圆最多缩小 70%
}
// 2. 绘制起点圆（断裂后消失）
if (!isDragging || distance <= maxDragDistance) {
if (isDragging) {
// 拖拽过程中起点圆随距离缩小
} else {
startRadius = initialRadius;
}
canvas.drawCircle(startCenter, startRadius, paint);
}
// 3. 绘制终点圆（拖拽时跟随手指，断裂时播放缩放消失动画）
if (isDragging) {
canvas.drawCircle(endCenter, endRadius, paint);
} else if (burstScale < 1.0) {
// 断裂爆炸动画
canvas.drawCircle(endCenter, endRadius * burstScale, paint);
} else {
// 初始状态
canvas.drawCircle(startCenter, initialRadius, paint);
}
// 4. 绘制贝塞尔连接带
if (isDragging && distance < maxDragDistance && distance > 0) {
final path = Path();
// 计算连接点坐标（基于三角函数）
// 起点圆上的两个切点
final startX1 = startCenter.dx + startRadius * cos(angle + pi / 2);
final startY1 = startCenter.dy + startRadius * sin(angle + pi / 2);
final startX2 = startCenter.dx + startRadius * cos(angle - pi / 2);
final startY2 = startCenter.dy + startRadius * sin(angle - pi / 2);
// 终点圆上的两个切点
final endX1 = endCenter.dx + endRadius * cos(angle + pi / 2);
final endY1 = endCenter.dy + endRadius * sin(angle + pi / 2);
final endX2 = endCenter.dx + endRadius * cos(angle - pi / 2);
final endY2 = endCenter.dy + endRadius * sin(angle - pi / 2);
// 贝塞尔控制点（取两点连线的中点）
final controlX = (startCenter.dx + endCenter.dx) / 2;
final controlY = (startCenter.dy + endCenter.dy) / 2;
// 绘制上半部分曲线
path.moveTo(startX1, startY1);
path.quadraticBezierTo(controlX, controlY, endX1, endY1);
// 绘制下半部分曲线（闭合路径）
path.lineTo(endX2, endY2);
path.quadraticBezierTo(controlX, controlY, startX2, startY2);
path.close();
canvas.drawPath(path, paint);
}
}
@override
bool shouldRepaint(covariant QqBubblePainter oldDelegate) {
return oldDelegate.dragOffset != dragOffset ||
oldDelegate.isDragging != isDragging ||
oldDelegate.burstScale != burstScale;
}
}
手写板带播放效果
import 'package:flutter/material.dart';
// 1. 笔画数据模型（包含时间戳）
class Stroke {
final List<Offset> points;
final DateTime startTime;
final DateTime endTime;
final Color color;
final double strokeWidth;
Stroke({
required this.points,
required this.startTime,
required this.endTime,
this.color = Colors.black,
this.strokeWidth = 5.0,
});
int get duration => endTime.difference(startTime).inMilliseconds;
}
class HandwritingCanvas extends StatefulWidget {
const HandwritingCanvas({super.key});
@override
State<HandwritingCanvas> createState() => _HandwritingCanvasState();
}
class _HandwritingCanvasState extends State<HandwritingCanvas>
with SingleTickerProviderStateMixin {
// 历史笔画
final List<Stroke> _strokes = [];
// 正在绘制的笔画（使用 ValueNotifier 保证书写绝对流畅）
final ValueNotifier<List<Offset>> _currentPointsNotifier = ValueNotifier([]);
DateTime? _strokeStartTime;
// 播放控制
late AnimationController _playbackController;
late Animation<double> _playbackAnimation;
bool _isPlaying = false;
@override
void initState() {
super.initState();
_playbackController = AnimationController(
vsync: this,
duration: const Duration(seconds: 5),
);
_playbackAnimation = Tween<double>(begin: 0.0, end: 1.0).animate(
CurvedAnimation(parent: _playbackController, curve: Curves.linear),
);
// 监听播放动画，触发画笔重绘
_playbackAnimation.addListener(() {
if (_isPlaying) setState(() {});
});
}
@override
void dispose() {
_playbackController.dispose();
_currentPointsNotifier.dispose();
super.dispose();
}
// --- 录制逻辑 ---
void _onPanStart(DragStartDetails details) {
if (_isPlaying) return; // 播放时禁止书写
_strokeStartTime = DateTime.now();
_currentPointsNotifier.value = [details.localPosition];
}
void _onPanUpdate(DragUpdateDetails details) {
if (_isPlaying) return;
_currentPointsNotifier.value = [
..._currentPointsNotifier.value,
details.localPosition
];
}
void _onPanEnd(DragEndDetails details) {
if (_isPlaying) return;
if (_currentPointsNotifier.value.isNotEmpty && _strokeStartTime != null) {
setState(() {
_strokes.add(Stroke(
points: List.from(_currentPointsNotifier.value),
startTime: _strokeStartTime!,
endTime: DateTime.now(),
));
_currentPointsNotifier.value = [];
});
}
}
// --- 播放逻辑 ---
void _startPlayback() {
if (_strokes.isEmpty || _isPlaying) return;
setState(() => _isPlaying = true);
final totalDuration =
_strokes.last.endTime.difference(_strokes.first.startTime);
_playbackController.duration = totalDuration;
_playbackController.forward(from: 0.0).then((_) {
setState(() => _isPlaying = false);
});
}
// --- 清除逻辑 ---
void _clearCanvas() {
if (_isPlaying) return;
setState(() {
_strokes.clear();
_currentPointsNotifier.value = [];
});
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('完美手写板'),
actions: [
IconButton(
icon: const Icon(Icons.play_arrow),
onPressed: _isPlaying ? null : _startPlayback,
tooltip: '播放笔迹',
),
IconButton(
icon: const Icon(Icons.delete_outline),
onPressed: _isPlaying ? null : _clearCanvas,
tooltip: '清除画板',
),
],
),
body: GestureDetector(
onPanStart: _onPanStart,
onPanUpdate: _onPanUpdate,
onPanEnd: _onPanEnd,
child: RepaintBoundary(
child: CustomPaint(
size: Size.infinite,
painter: HandwritingPainter(
strokes: _strokes,
currentPoints: _currentPointsNotifier,
isPlaying: _isPlaying,
playbackProgress: _playbackAnimation.value,
totalDurationMs: _strokes.isNotEmpty
? _strokes.last.endTime
.difference(_strokes.first.startTime)
.inMilliseconds
: 0,
),
),
),
),
);
}
}
class HandwritingPainter extends CustomPainter {
final List<Stroke> strokes;
final ValueNotifier<List<Offset>> currentPoints;
final bool isPlaying;
final double playbackProgress;
final int totalDurationMs;
HandwritingPainter({
required this.strokes,
required this.currentPoints,
required this.isPlaying,
required this.playbackProgress,
required this.totalDurationMs,
}) : super(repaint: currentPoints); // 依然保留 ValueNotifier 驱动书写
@override
void paint(Canvas canvas, Size size) {
if (isPlaying) {
// ================= 播放模式 =================
final currentTimeMs = (playbackProgress * totalDurationMs).toInt();
for (final stroke in strokes) {
final elapsed = currentTimeMs -
stroke.startTime.difference(strokes.first.startTime).inMilliseconds;
if (elapsed <= 0) continue; // 还没到开始时间
final paint = Paint()
..color = stroke.color
..strokeWidth = stroke.strokeWidth
..strokeCap = StrokeCap.round
..strokeJoin = StrokeJoin.round
..style = PaintingStyle.stroke;
final path = Path();
path.moveTo(stroke.points.first.dx, stroke.points.first.dy);
for (int i = 1; i < stroke.points.length; i++) {
path.lineTo(stroke.points[i].dx, stroke.points[i].dy);
}
if (elapsed < stroke.duration) {
// 正在播放中的笔画：按比例截取
final progress = elapsed / stroke.duration;
final metric = path.computeMetrics().first;
canvas.drawPath(
metric.extractPath(0, metric.length * progress), paint);
} else {
// 已经播放完的笔画：完整绘制
canvas.drawPath(path, paint);
}
}
} else {
// ================= 书写模式 =================
// 绘制历史笔画
for (final stroke in strokes) {
final paint = Paint()
..color = stroke.color
..strokeWidth = stroke.strokeWidth
..strokeCap = StrokeCap.round
..strokeJoin = StrokeJoin.round
..style = PaintingStyle.stroke;
final path = Path();
path.moveTo(stroke.points.first.dx, stroke.points.first.dy);
for (int i = 1; i < stroke.points.length; i++) {
path.lineTo(stroke.points[i].dx, stroke.points[i].dy);
}
canvas.drawPath(path, paint);
}
// 绘制正在写的笔画（通过 ValueNotifier 局部重绘，绝对流畅）
final points = currentPoints.value;
if (points.isNotEmpty) {
final paint = Paint()
..color = Colors.black
..strokeWidth = 5.0
..strokeCap = StrokeCap.round
..strokeJoin = StrokeJoin.round
..style = PaintingStyle.stroke;
final path = Path();
path.moveTo(points.first.dx, points.first.dy);
for (int i = 1; i < points.length; i++) {
path.lineTo(points[i].dx, points[i].dy);
}
canvas.drawPath(path, paint);
}
}
}
@override
bool shouldRepaint(covariant HandwritingPainter oldDelegate) {
// 播放时或者历史笔画变化时重绘
return isPlaying || oldDelegate.strokes != strokes;
}
}

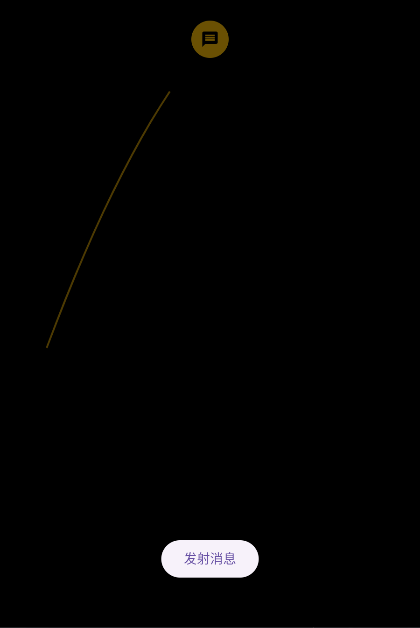

抛物线动画效果
评论 (0)
